EarthLoc Modular Grid Wall Applications

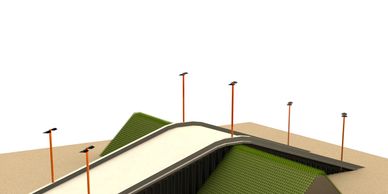

Modular Grid Sand Dune – “IKE Dike”
EarthLoc’s modular grid sand dune system combines a natural beach grass appearance with permanent, engineered protection for the Galveston and Bolivar coastlines. Designed to defend against catastrophic storm surges like Hurricane Ike—which caused over $30 billion in damage—this solution delivers both resilience and coastal beauty.
[Click below to download the PDF presentation.]

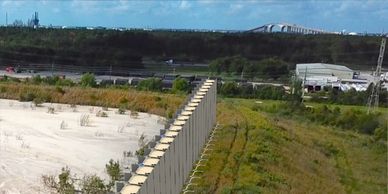

 18-Foot Modular Grid Levee Wall
This 18-foot-tall modular grid wall is engineered to be installed atop a levee along the Houston Ship Channel, adding 2.55 million cubic yards of storage capacity to an 88-acre containment area.

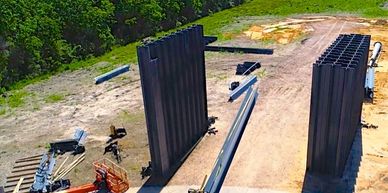

Modular Grid Border Barrier
EarthLoc’s Modular Grid Border Barrier is purpose-built to follow the natural path of the Rio Grande River along Texas’s southern border, providing a secure and adaptable solution.
[Click below to watch the video!]

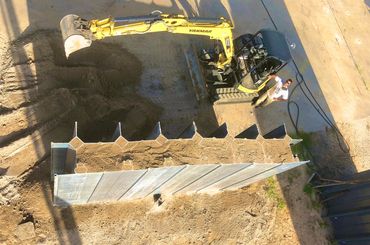

EarthLoc’s First Landmark Project (2014)
In 2014, EarthLoc’s Modular Grid Foundation was chosen to support the tallest sand silos in North America. Engineered for extreme load capacity, the system is topped with just 12 inches of concrete yet delivers an incredible 185,000 pounds per square foot of bearing strength at the base of each silo. After more than a decade of continuous operation, the foundation has shown zero measurable settlement, proving its unmatched durability and performance.

Applications for EarthLoc’s Design Expertise

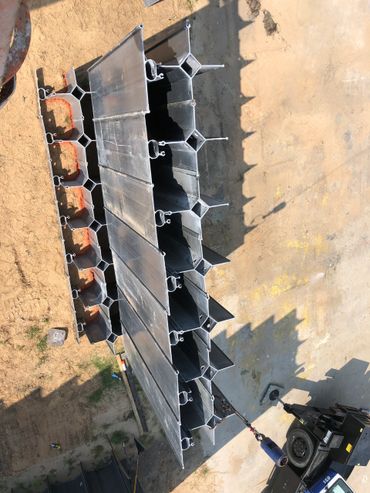

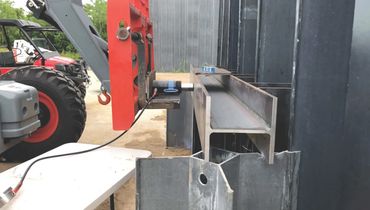

EarthLoc’s FRP Modular Grid opens possibilities limited only by imagination. Our patent-pending installation method is one-of-a-kind—every module and stanchion is load-tested during placement, ensuring proven strength from the ground up. From foundations, seawalls, and security barriers to containment systems, docks, piers, and bulkheads—if you can envision it, EarthLoc can build it.

Containment Wall Solutions
Independent, sealed engineering reports have confirmed that EarthLoc’s Containment Walls can withstand forces more than 30 times greater than the hydrostatic loads generated by dredge spoil storage. The design is fully scalable—thanks to its innovative counterweight system, each additional containment level not only increases capacity but also enhances overall structural strength. This unmatched performance makes EarthLoc the ideal solution to address the global shortage of dredge spoil placement areas.
